Straight 8
- 1-Pass Polish — 8 polishing heads plus 2 chamfer positions.
- Slab Rack — Optional slab rack helps support large pieces.
- Feed Rates — Up to 87 IPM on 3 cm and 98 IPM on 2 cm.

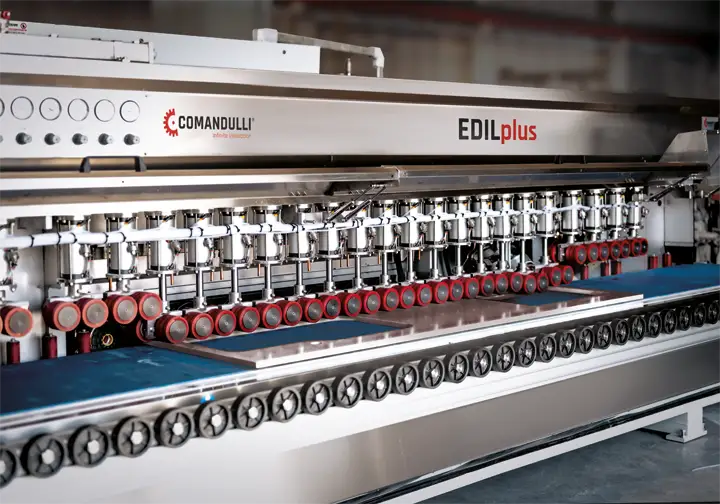

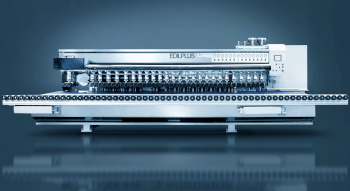

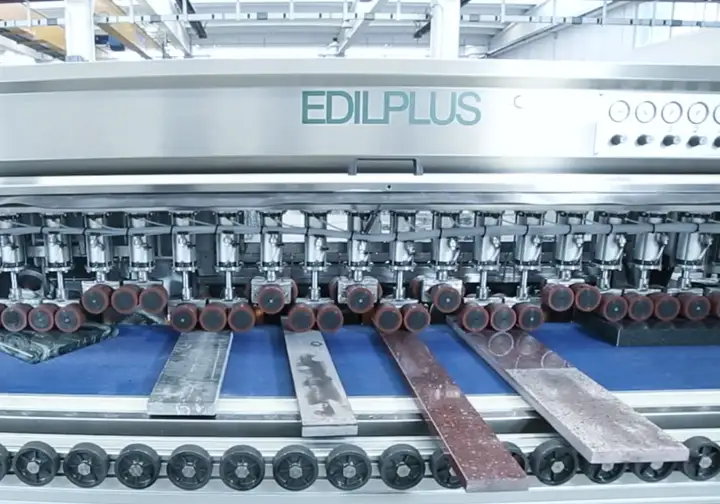

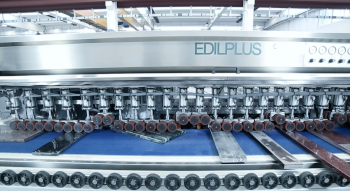

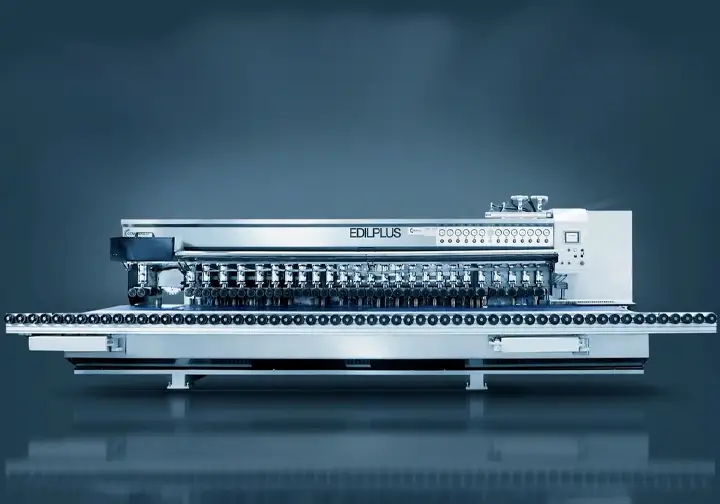

The Comandulli Edilplus is a high-productivity multi-spindle belt polishing machine engineered for marble, granite, engineered stone, and ceramic. Equipped with the patented TMM Calibrator, the Edilplus delivers precise bevels and consistent polish on all material types.

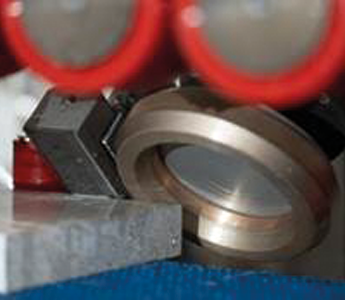

(2) 3 Horsepower spindles positioned at 45 degrees are equipped with a calibrated bevel device that creates a constant bevel for the full length of the slab.
To prevent the machinery from rusting, its structure, and main parts are metalized through a modern treatment that follows different phases: sandblasting, metallization with zinc wire, priming coat with zinc phosphate epoxy product, and final painting with a high solid polyacrylic enamel. The painted covers are subject to cataphoresis treatment which follows different phases: degreasing of the piece, spry or dipping pretreatment, electroplating bath which uses electric power to plate the paint to make a uniform skin, after-washing, and furnace baking.
Horizontal machines make processing larger countertops safer and easier because they are much easier to handle (load/unload) versus vertical machines. The Edilplus was designed with both backsplash & full countertop pieces in mind.

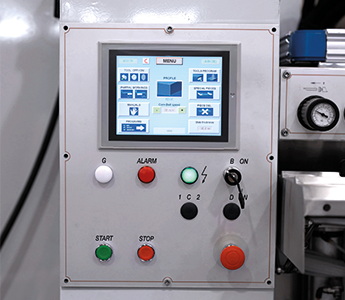

Push-button control panel with coloured visualized touch screen keyboard. Latest-generation electronics that, associated with a 8” screen, allows in a very simple and intuitive way, to program in automatic mode the intervention (even partial) of every single unit. Complete diagnostic visualized on the screen through images of all the machine devices which allows to immediately locate the problem.

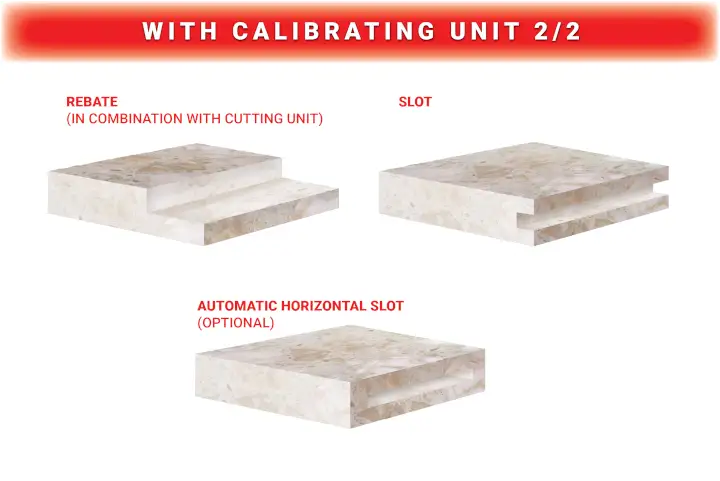

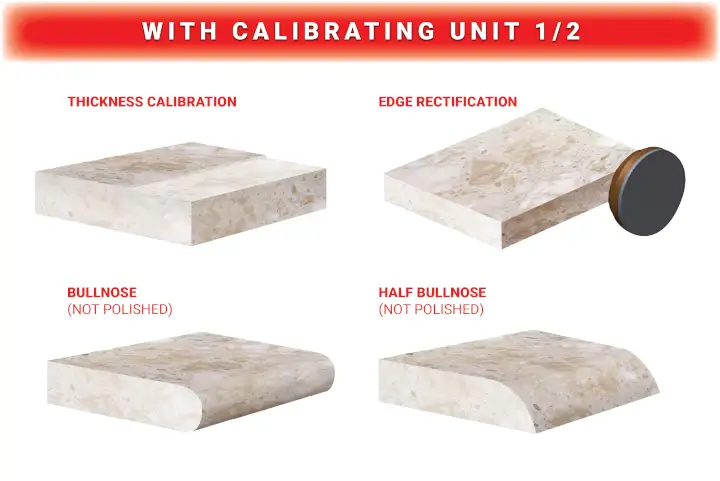

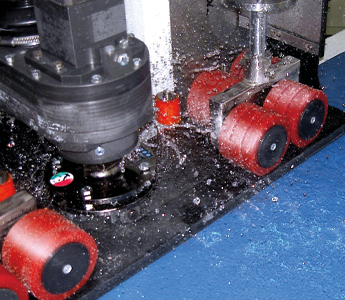

Calibrating spindle assembled on two orthogonal axes: the vertical one with automatic positioning, the horizontal one with manual positioning. Possibility to tilt to 90°.

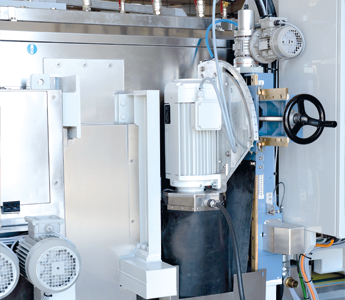

The solenoid stops the water from flowing when the machine is not in operation.
Utilized for honing of the calibrated strip or removing the net from ceramics.

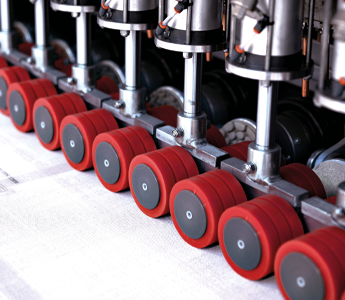

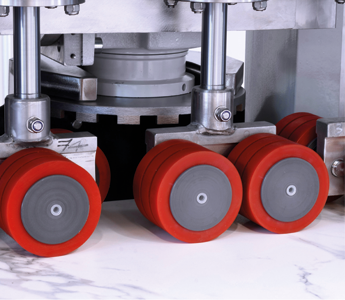

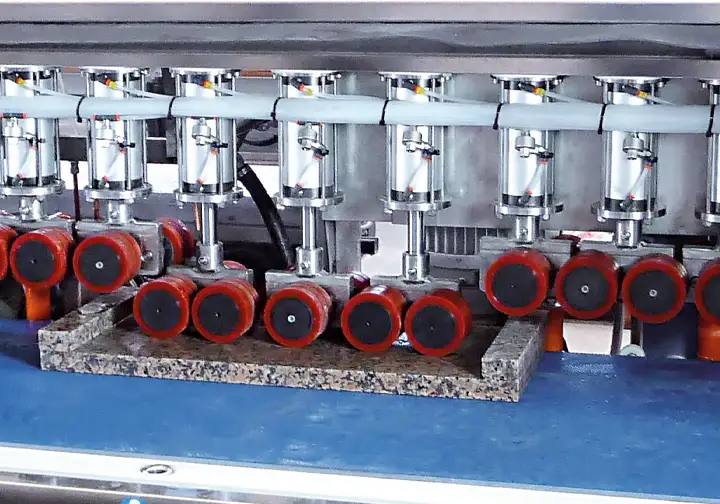

Utilized to hold pieces down while traveling through the machine.

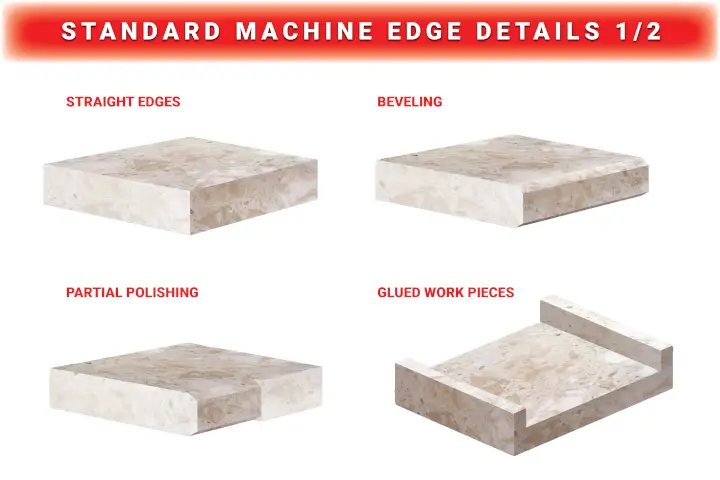

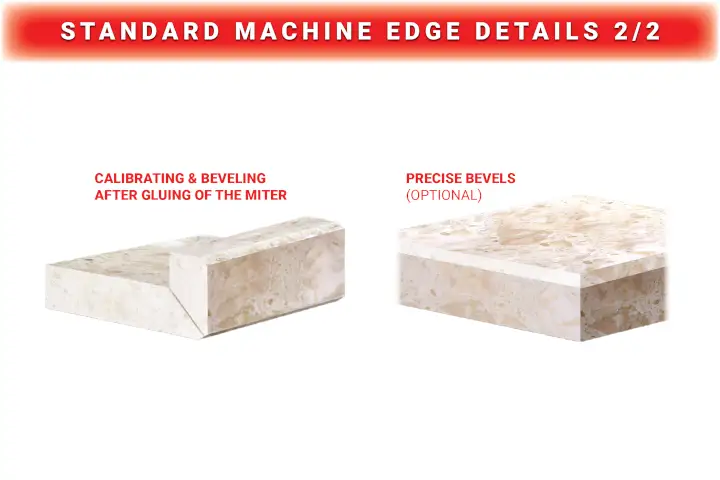

2 diamond-equipped spindles (1 upper and 1 lower). TMM group: automatic lock device to realize perfect bevels.

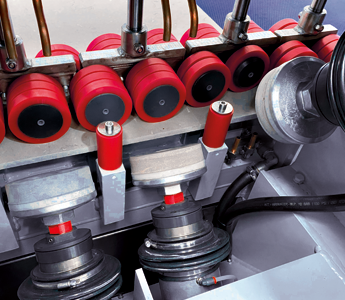

4 spindles for bevels (2 upper and 2 lower) – N°4 Spindles at 45° (N°2 up, N°2 down) for beveling; electric motors in axis with the spindles, power 2 Horsepower each, 900rpm; wheel diameter 5 inches; The first lower spindle is equipped with manual mechanical stop FM. Power 2 Horsepower each, 900rpm; wheel diameter is 5 inches.

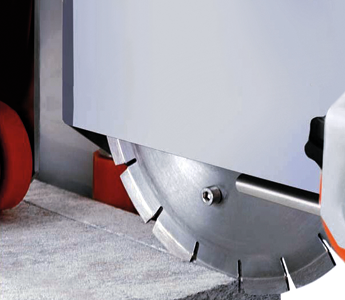

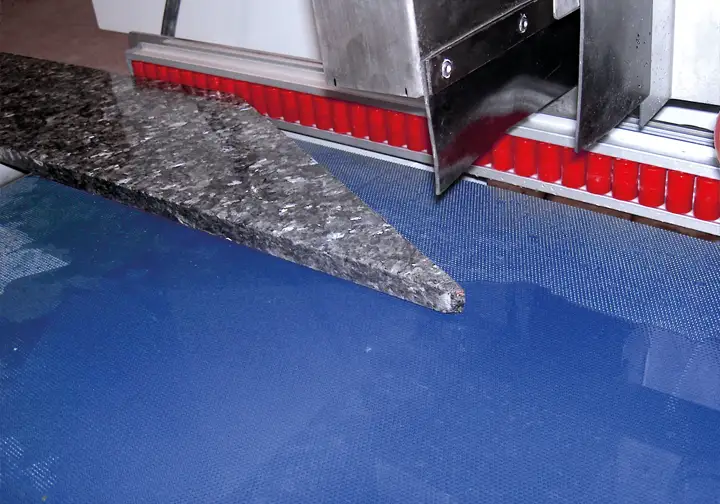

Saw attachment used for cutting a slot for rods or used for cutting a 45-degree angle for miters. The cutting unit is programmable from the touch screen.

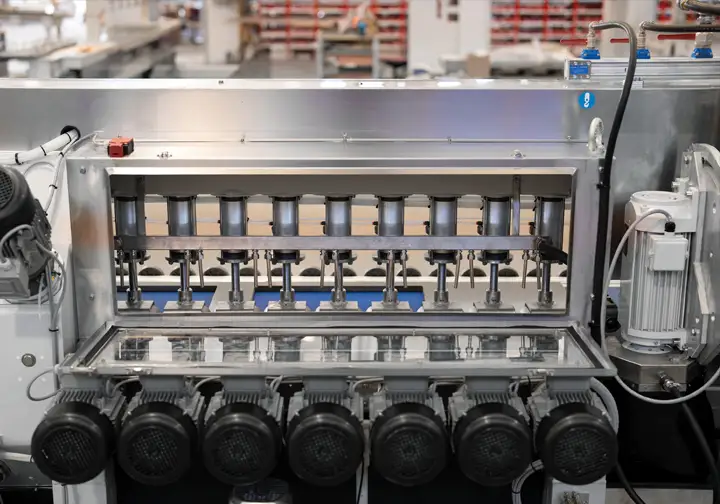

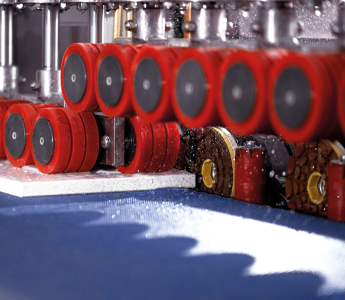

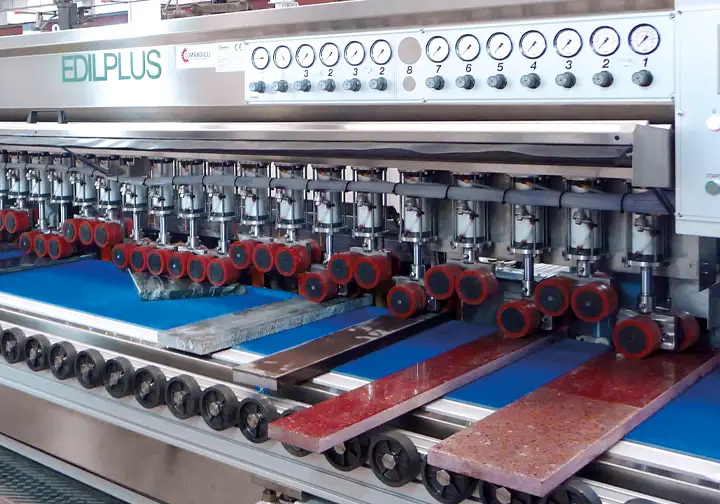

N°8 Polishing spindles for straight edges with electrical motor in axis; power 2 Horsepower each, 900rpm each; spindles assembled on a beam with the possibility of floating during the working; wheel diameter 5 inches.

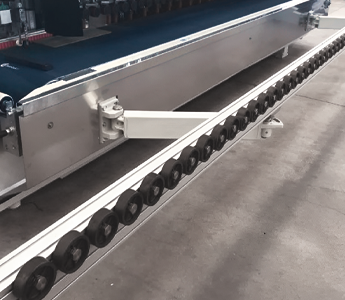

Used to support large workpieces.

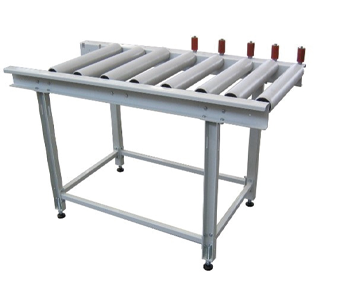

N° 2 Rollers table (n. 1 initial and n. 1 final) each one is 6.5’ long.
Every number below is production-floor reality — measured, repeatable, warrantied.
↓ Edilplus Layout (Imperial)
